Electro Technical Calibrations

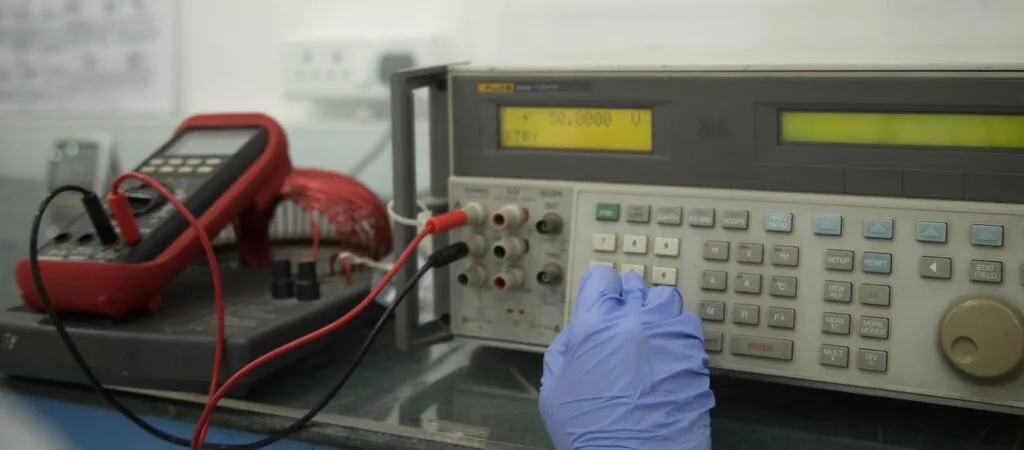

Electrical instrument calibration means using very accurate tools to check how well other devices, known as "Unit Under Calibration" (UUCs), are working. Since these accurate tools have known performance details compared to the UUC, we can assess and adjust the UUC's performance to find and reduce errors.
We provide Calibration services for various instruments, including but not limited to:
- AC/ DC Voltmeter/ Ammeter (Digital/ Analog)
- Temperature Simulation (RTD/ Thermocouple)
- Digital Mutimeter/ Clamp meter
- Power/ Energy Meter
- Power Factor Meter
- Stop watch/ Timer
- Shunt
- HV probe with DMM
- Sound level meter
- Frequency meter
- Phase meter
- Passive Device
- Power Supply
- pH meter
- Lux meter
- And many more....
Scope of Services:
| Parameter | Range | Method for calibration |
|---|---|---|
| DMM/ Clamp meter: AC/DC Voltage | 0- 1000 V | Direct calibration with multi function calibrator |
| AC/DC Current | 0- 1000 A | Fluke 5520A with current coil |
| DC Resistance | 0- 1090 MΩ | Direct calibration with multi function calibrator |
| Frequency | 0- 2 MHz | Direct calibration with multi function calibrator |
| Capacitance | 0.19 nf - 110 mF | Direct calibration with multi function calibrator |
| 1/3 Phase Power/ Energy Meter | 0.15 W - 9600 W | Direct calibration with multi function calibrator/ Power analyzer |
| AC/DC Voltmeter (Analog/ Digital) | 0- 1000 V | Direct calibration with multi function calibrator |
| AC/DC Ammeter (Analog/ Digital) | 0- 1000 A | Fluke 5520A with current coil |
| Phase Meter | 0- 360° | Direct calibration with multi function calibrator |
| Power Factor Meter | 0-1 pF | Direct calibration with multi function calibrator |
| Temperature Simulation (RTD/ Thermocouple) | -200°C – 1760°C | Direct calibration with multi function calibrator |
| Decade Resistance Box | 0- 1000 MΩ | Direct Calibration by 6.5 DMM |
| Decade Capacitance Box | 1 nF – 10mF | Direct Calibration by 6.5 DMM |
| Power Supply | 0- 1000V/ 10A | Direct Calibration by 6.5 DMM |
| Stop Watch/ Timer | 0- 24 hr | Comparison by Stop watch |
| Sound Level Meter | 94 dB, 114 dB | Direct calibration by sound level meter |
| Lux Meter | 0-10050 lux | Comparison method by monochromatic light and lux meter |
| pH Meter | 0- 14 pH | Electrical Calibration by 6.5 DMM |
| Shunt | 0- 20 A | Direct calibration with multi function calibrator |
| HV Probe with DMM | 0-25 kV AC/ 0-3 kV DC | Comparasion method by HV probe with DMM |
